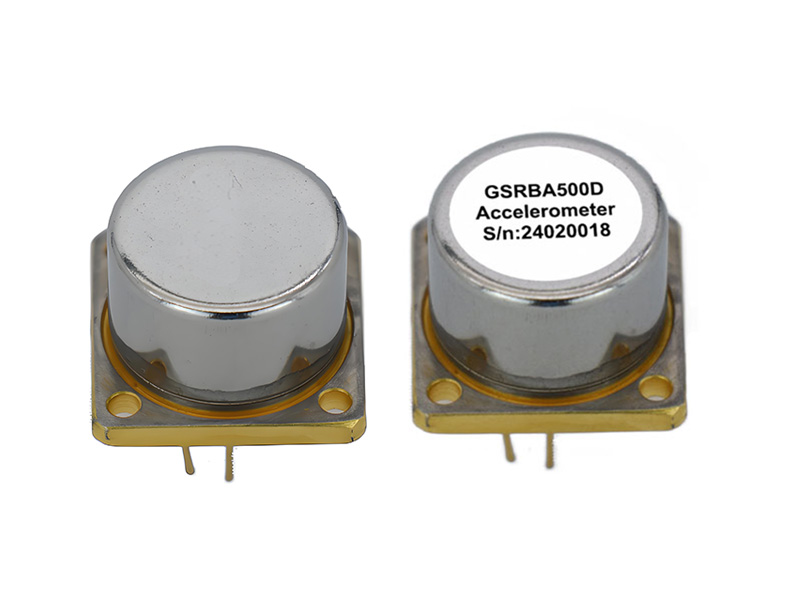

GSRBA500D Quartz Flexible Accelerometer 1

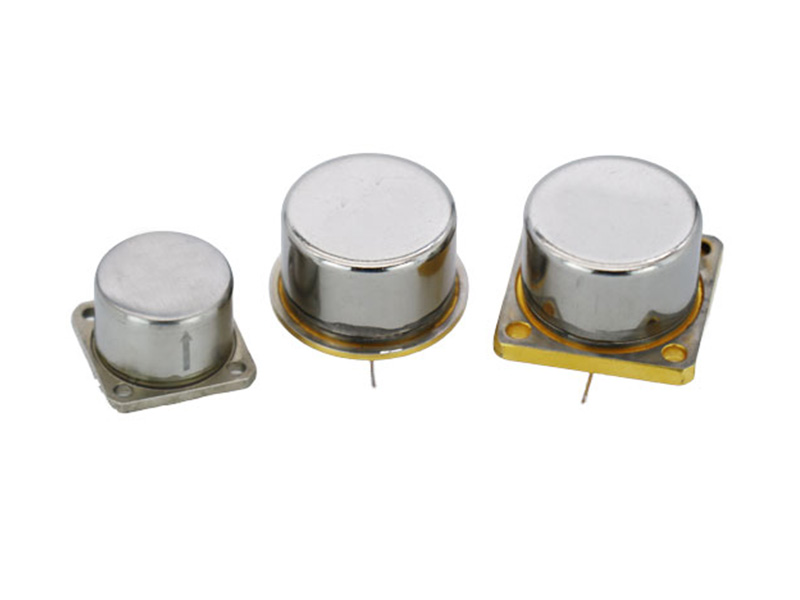

GSRBA500D Quartz Flexible Accelerometer 2

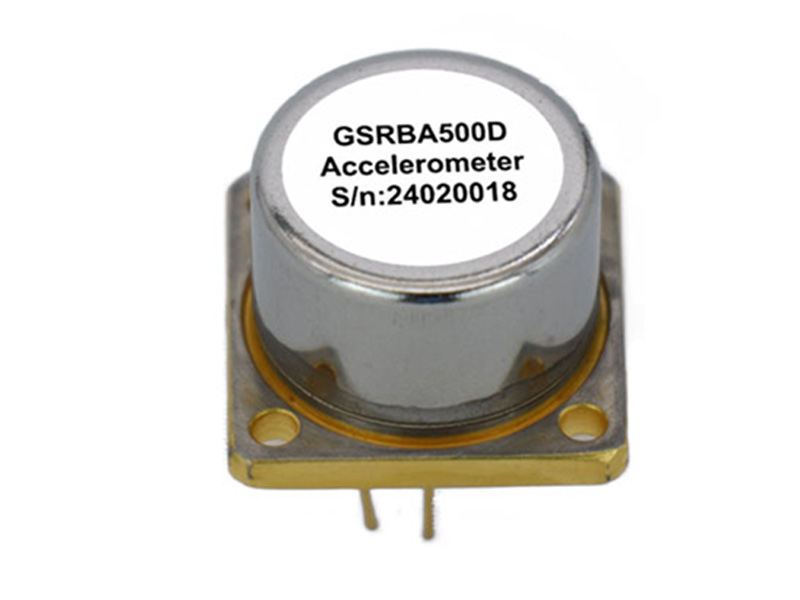

GSRBA500D Quartz Flexible Accelerometer 3

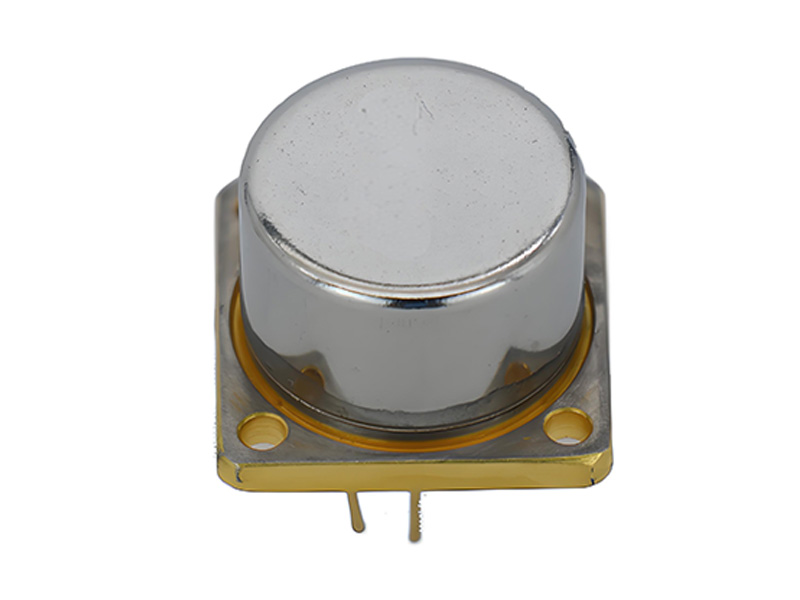

GSRBA500D Quartz Flexible Accelerometer 4

GSRBA500D Quartz Flexible Accelerometer

GSRBA500D is a solid-state digital-output accelerometer built on quartz flexible technology. Unlike traditional analog sensors, it delivers direct digital readings with fast start-up and minimal power draw. ±70g range and 22×22×14mm compact housing. Bias stability ≤100μg, second-order nonlinearity ≤80μg/g2, noise floor ≤10μg — delivering precision previously found only in larger devices. 400Hz bandwidth and 200g shock tolerance with -45°C to +85°C operation. Quartz design inherently resists shock and vibration, offering long-term stability analog accelerometers cannot match. The sensor consumes just 5mA at 15V, making it ideal for aerospace, aviation, navigation, military weapons, and vehicle systems where reliability and accuracy are mission-critical.

Feature:

● Digital output
● Wide Bandwidth
● Low Power Consumption
● High Reliability
● Wide Operating Temperature Range
● Small Size
● Fast Start-Up

Inquiry

Write a Review

Product Introduction

GSRBA500D quartz vibration beam accelerometer is a new solid-state digital output acceleration sensor, which has the advantages of large range, small size, high precision, low power consumption, short start-up time, shock vibration resistance and high reliability. Therefore, the quartz vibration beam accelerometer has more advantages than the traditional analog output accelerometer.

Technical Specifications

Parameter	GSRBA500D
Power supply parameter
Power Voltage	14~16VDC
Power 25°C	75mW @15VDC
Supply current	5mA
Product performance
Range	±70g
Size	22mm×22mm×14mm
Bias	0g±2g
Bias stability	≤100ug
Bias temperature sensitivity	100ug/°C
Bias repeatability	≤100ug
Scale factor	56Hz/g±5Hz/g
Scale factor temperature sensitivity	500ppm/°C
Second order nonlinear coefficient	≤80μg/g²
Second order nonlinearity coefficient repeatability	≤50μg/g²
Scale factor repeatability	≤50ppm
Temperature sensor	40KHz±2%(0.3Hz/°C)@25°C
Noise	<10μg
Threshold	≤1×10⁻⁵g
Bandwidth	≥400Hz
Weight	≤23g
Environment
Operating temperature	-45°C～+85°C
Storage temperature	-55°C～100°C
Random vibration	5grms (20Hz～2000Hz)
Shock	200g
