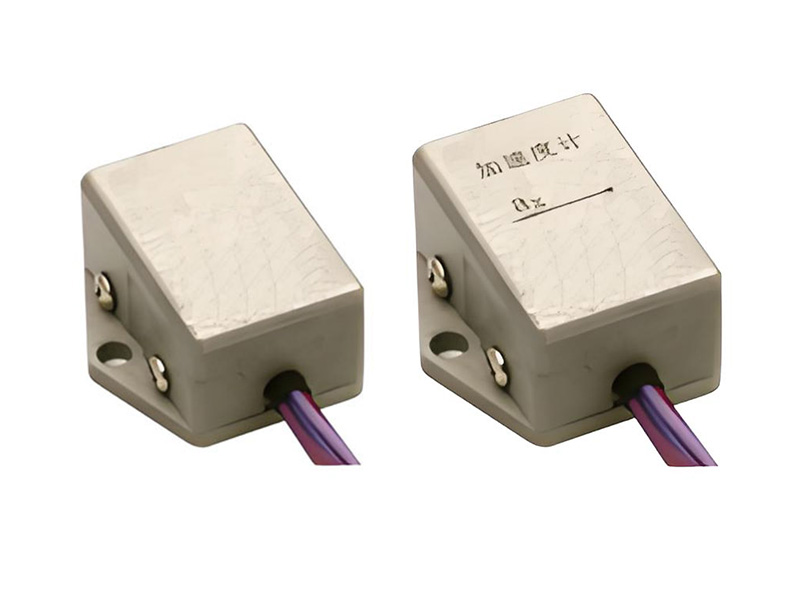

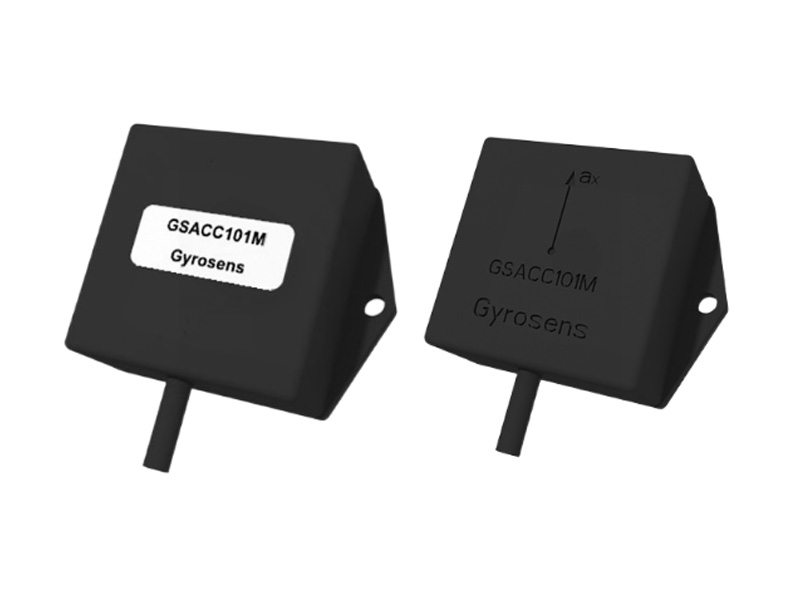

GSACC101M Single-Axis MEMS Accelerometer
GSACC101M delivers high-sensitivity single-axis vibration sensing with ±1g range and 1000mV/g analog output. Resolution better than 0.001g and nonlinearity ≤0.5%FS ensure accurate low-frequency acceleration measurement.
The 19.5×18.8×8.4mm package draws just 2mA from a 5V supply with full temperature compensation. Designed for flight control stabilization and seismic detection where precision at low frequencies is critical.
The 19.5×18.8×8.4mm package draws just 2mA from a 5V supply with full temperature compensation. Designed for flight control stabilization and seismic detection where precision at low frequencies is critical.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Feature
l Analog voltage output
l Wide measuring range
l impact resistance，Good vibration performance
l Small size, light weight,
l Good linearity
Dimensions
Technical Specifications
| Parameter | GSACC101M |
| Electric character | |
| Input voltage | 5±0.25 VDC |
| Input current | ≤2 mA |
| Output Mode | 0.5~4.5V |
| Performance index | |
| Axial direction | X |
| Range | ±1 g |
| Bandwidth | ≥50 Hz |
| Sensitivity | 1000±30 mV / g |
| Resolution (°/s) | ≤ 0.001 g |
| Nonlinear (%FS) | ≤ 0.5% Fs |
| Bias | 2.5±0.1 V |
| Start-up time (ms) | ≤1 s |
| Physical Characteristics | |
| Weight (g) | 40g |
| Dimensions | 19.5×18.8×8.4 mm |
PDF
DOCX
Application
● Aircraft Stability control
Our in-house designers and engineers have produced countless great designs for customers from different industries
● Seismic detection
Our in-house designers and engineers have produced countless great designs for customers from different industries
