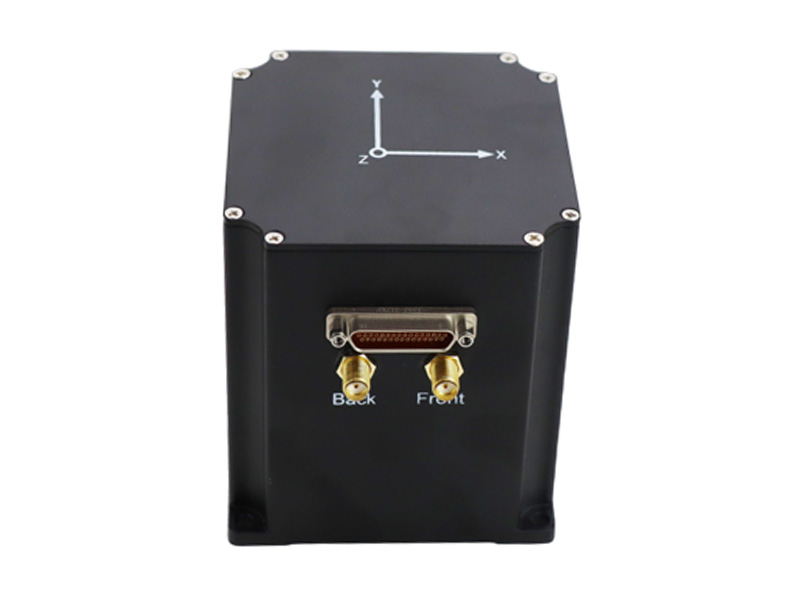

GSINS025C Miniature FOG Integrated Navigation System 1

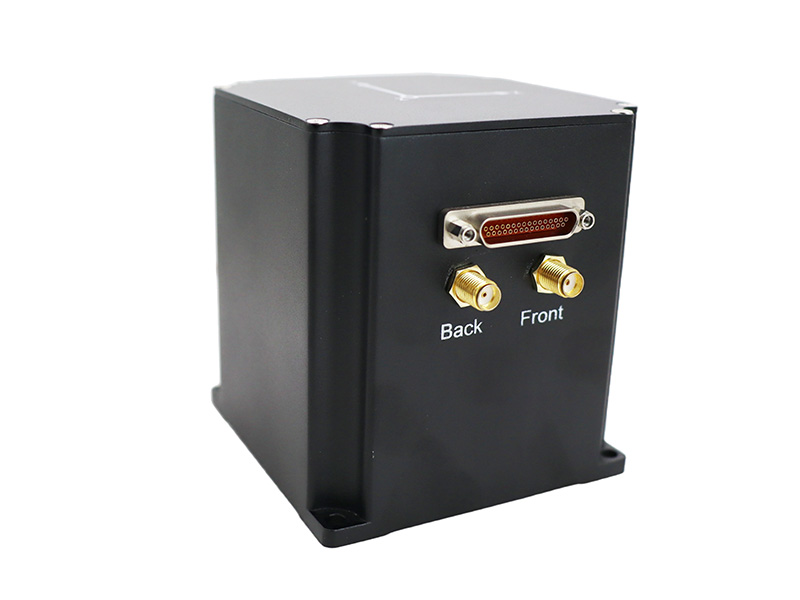

GSINS025C Miniature FOG Integrated Navigation System 2

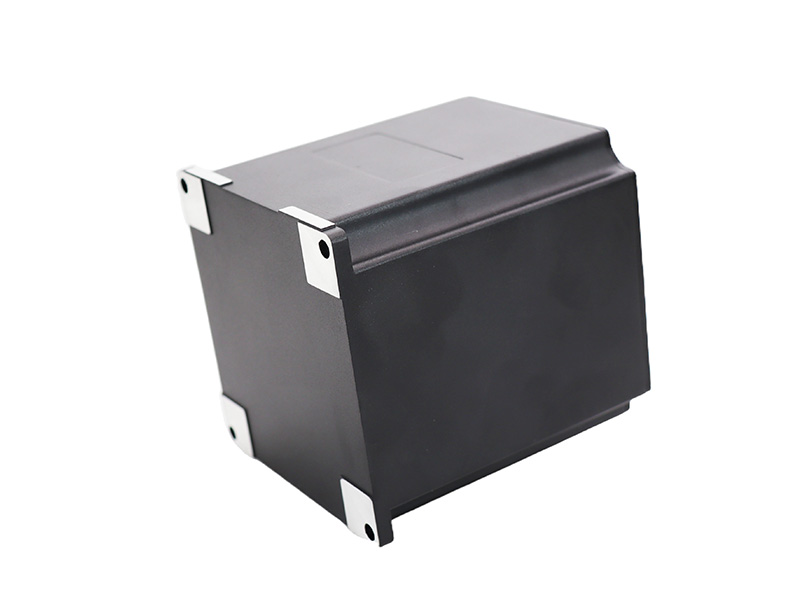

GSINS025C Miniature FOG Integrated Navigation System 3

GSINS025C Miniature FOG Integrated Navigation System

GSINS025C achieves attitude <0.01° and heading <0.05° within an 80×80×84mm enclosure weighing just 0.8kg—one of the smallest FOG-based INS systems at this accuracy level. Power consumption below 12W and RTK-ready design support centimeter-level positioning. DVL, odometer, and USBL fusion capabilities make it ideal for UAVs, UGVs, and underwater vehicles where every gram and millimeter counts.

Feature:
● High-Precision Angular Velocity Measurement
● Strong Anti-Interference Capability
● Compact and Lightweight, Suitable for Space-Constrained Applications
● No Mechanical Wear, Longer Service Life
● Rich Interfaces, Compatible with DVL, Odometer, and USBL

Inquiry

Write a Review

Product Introduction

A fiber optic inertial integrated navigation system integrates an Inertial Navigation System (INS) with other navigation systems such as the Global Navigation Satellite System (GNSS). By using algorithms like Kalman filtering, it fully leverages the advantages of the inertial navigation system—high short-term accuracy and strong autonomy—and the global navigation satellite system—stable long-term accuracy. This integration suppresses the respective errors of each system, achieves optimal calculation of the carrier's position, velocity, and attitude, and enhances the reliability and stability of the navigation system.

The fiber optic inertial integrated navigation system consists of an Inertial Measurement Unit (IMU), a satellite navigation receiver, a navigation computer, and a data transmission interface.

TheGSINS025C Fiber Optic Inertial Integrated Navigation System is a miniaturized fiber optic inertial integrated navigation system with a volume of only 80×80×84mm and a weight of merely 0.8kg. Composed of a 3-axis integrated fiber optic gyroscope, a quartz accelerometer, and a full-system multi-frequency satellite module, this system is widely used in the navigation and attitude measurement of aerospace vehicles, unmanned vehicles, and ships.

Technical Specifications

Category	Parameter Name	GSINS025C
Power Supply	Input Voltage	18~36VDC
	Run-up time	<5s
	Power ( 25°C)	<12W
Navigation Parameters	Position Accuracy	<1nm/10min; <1%D (DVL); <0.3%D (ODO)
	Attitude Accuracy (Pitch & Roll Accuracy)	<0.01°
	North-Seeking Accuracy	<0.8°secφ
	Heading Accuracy	<0.05°
	RTK Position Accuracy	<2cm+1ppm
	Single Point Positioning Accuracy	<1.2m
	Velocity Accuracy	<0.02m/s
	Initialization Time (Navigation)	<1-2min
Gyroscope Parameters	Bias (Gyroscope)	±1000 °/s
Gyroscope Parameters	Bias Stability (Gyroscope)	≤ 0.3°/h
IMU Parameters	Bias (Accelerometer)	±30 g
IMU Parameters	Bias Stability (Accelerometer)	≤ 50μg
Environmental	Operating Temperature	-45~+70°C
Environmental	Storage Temperature	-55~+80°C
Output Interface		RS232/RS422/PPS/CAN/RJ45 (Customizable)
Data Update Rate		0.1-100Hz
Weight		<0.8kg
Size		80×80×84mm

GSINS025C-V1

PDF

GSINS025C-V1

DOCX

Application

GSINS025C Miniature FOG Integrated Navigation System 7

● Aircraft Attitude Control, Navigation and Positioning
● Autonomous Vehicle Positioning and Path Planning
● Robot Attitude Control and Motion Tracking.

Our in-house designers and engineers have produced countless great designs for customers from different industries

● Navigation and Positioning for Ships, Submarines and Underwater Robots (ROVs/AUVs)
● Missile Guidance
