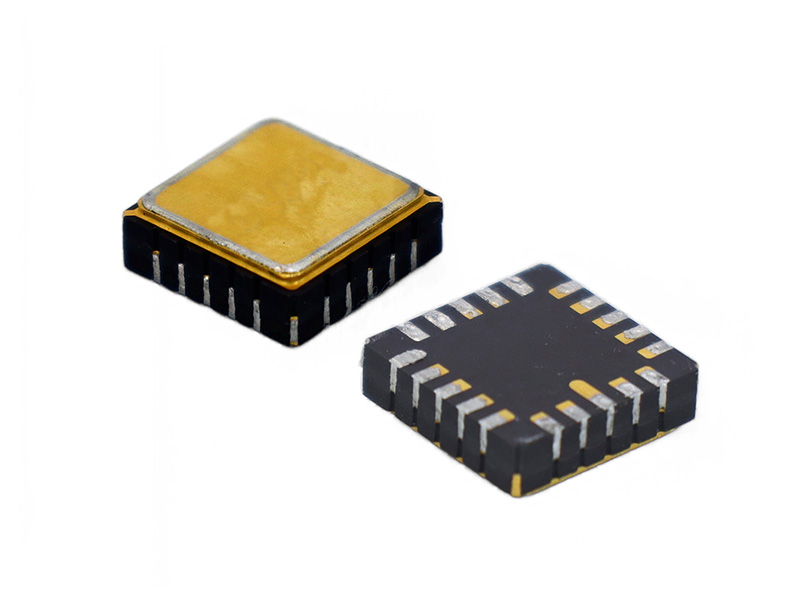

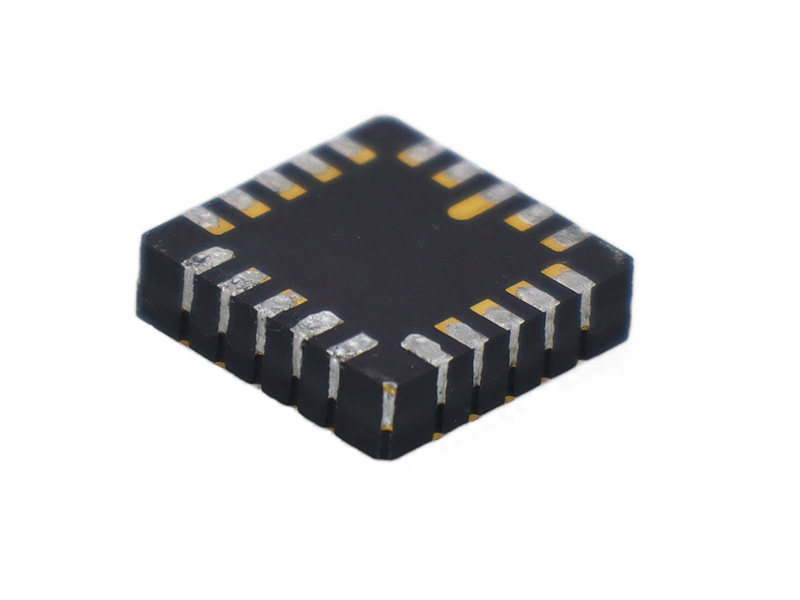

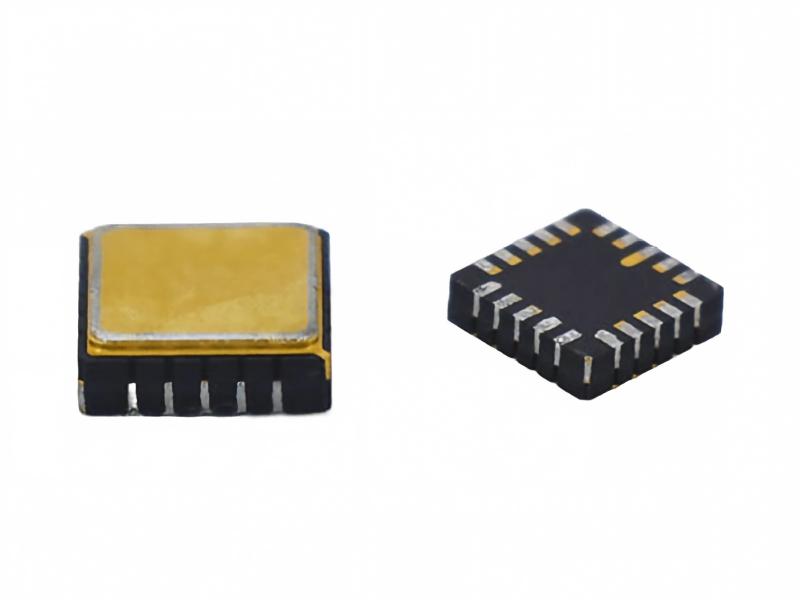

GSXV7021 Digital Quartz MEMS Gyro Chip
GSXV7021 brings gyro capability to chip-scale integration. The 8.9×8.9×2.7mm package consumes as little as 4mW (0.9mA) with SPI/I2C dual interface and 16/24-bit angular rate output. Bias temperature drift only 0.0016°/s/°C with angular random walk 0.065°/√h. Built-in programmable digital filters and temperature sensor. From wearables and medical motion detection to industrial image stabilization—chip-level gyro sensing empowers everything.
Feature：
Feature：
● Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The GSXV7021 feature superior bias output stability and low noise. Digital quartz gyroscope is based on quartz MEMS technology and completed by semiconductor processing technology.
In addition to compatibility for digital output interfaces (SPI, I2C), these sensors allow for independent interface power supply voltage settings to enable communications with various interfaces. User-selectable low-pass filters and high-pass filters enable a wide range of cut-off frequencies. Designed for low power consumption, these sensors are suitable for a wide range of uses, from wearable devices and other consumer electronics to industrial equipment.
Dimensions
Unit：mm
5 (19)
Technical Specifications
| Parameter | GSXV7021 |
| Power supply parameter | |
| Power Voltage | 2.7~3.6V DC |
| Power 25°C | 4mW |
| Product performance | |
| Supply current | ≤0.9mA |
| Output | SPI/I2C |
| Size | 8.9mm×8.9mm×2.7mm |
| Run-up time | 0.1s |
| Bias | ±1°/s |
| Bias stability | ≤0.5°/s |
| Bias temperature sensitivity | 0.0016°/s/°C |
| Random walk | 0.065 °/√h |
| Scale factor | ±1°/s |
| Scale factor temperature sensitivity | ±0.5% |
| Environment | |
| Operating temperature | -20℃～+80℃ |
| Storage temperature | -40℃～+85℃ |
