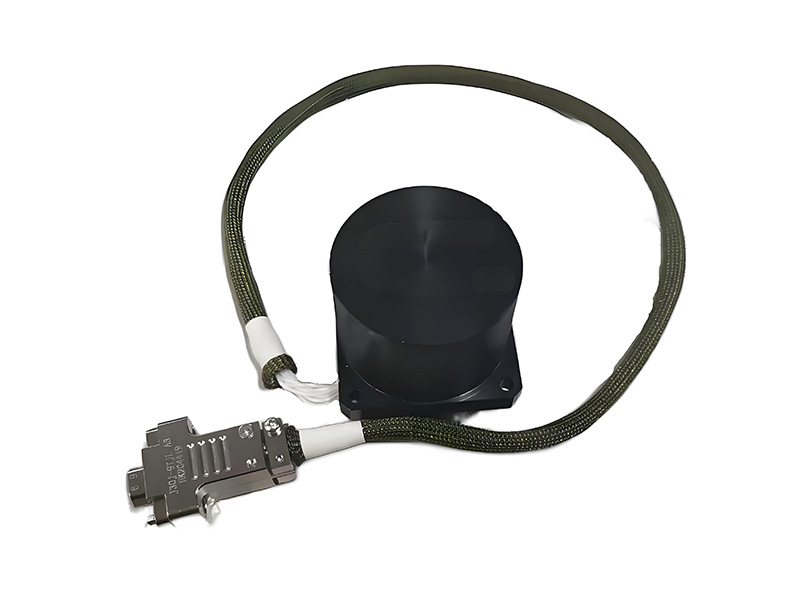

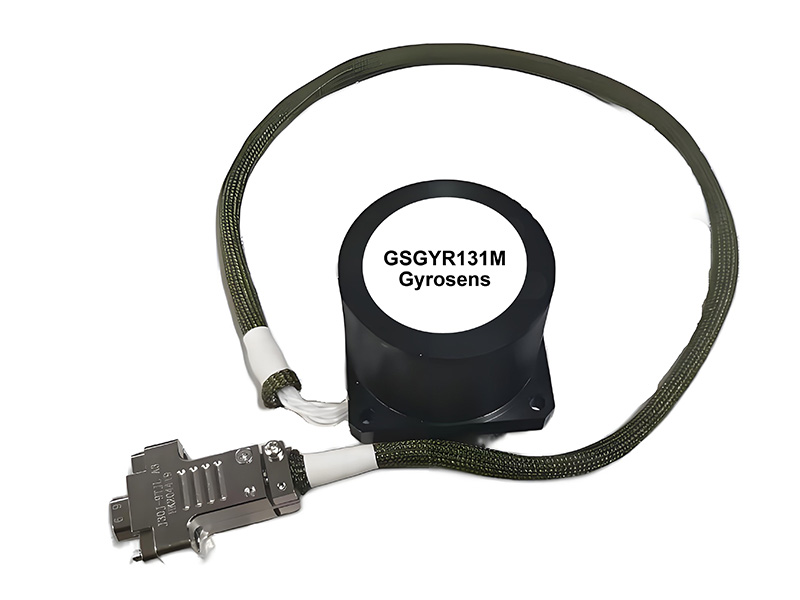

GSGYR131M Single-Axis Digital Quartz Gyro
GSGYR131M utilizes a quartz crystal resonant element for reliable single-axis rate sensing. Bias stability ≤15°/h within ±75°/s range. The 35×35×40mm, <150g package operates from 6~20V with just 0.3W power consumption and 2-second startup. RS422 digital output and -40°C to +85°C wide temperature range. Designed for petroleum exploration, aerospace, and munitions guidance where reliability and single-axis measurement are paramount.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
GSGYR131M single-axis digital quartz gyroscope can measure the angular velocity information of the carrier (combat vehicle, UAV, aerial bomb, etc.) in real time. It is suitable for inertial navigation, flight control, attitude stabilization and other systems, and is also widely used in oil, coal, water resources, automobiles, ships, aviation and other fields.
The measurement principle of quartz gyroscope is that the quartz will deform in the process of rotation, which will affect the vibration frequency of the crystal, and the angular speed and direction of the gyroscope can be calculated by measuring the change of the vibration frequency.
Feature
● High resolution
● Digital output
● Wide Bandwidth
● Low Power Consumption
● High Reliability
● Wide Operating Temperature Range
● Small Size
● Fast Start-Up
● Temperature compensation
Technical Specifications
| Parameter | GSGYR131M |
| Power supply parameter | |
| Power Voltage | +6~+20V DC |
| Product performance | |
| Turn-on time | 2s |
| Bias | 0°/s±1°/s |
| Bias stability | ≤15°/h |
| Bias temperature sensitivity | ≤1°/s |
| Range | ±75°/s |
| Weight | <150g |
| Power 25°C | 0.3W |
| Supply current | ≤20mA |
| Dimensions | 35mm×35mm×40mm |
| Environment | |
| Operating temperature | -40°C～+85°C |
| Storage temperature | -55°C~+100°C |
