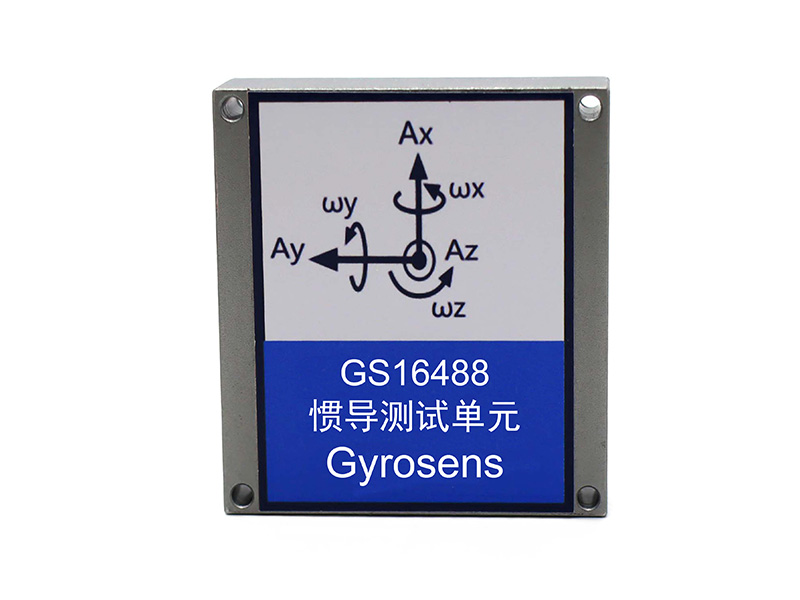

GS16488 10-DOF High-Performance IMU
GS16488 combines 3-axis gyro, accelerometer, magnetometer, and barometer into a true 10-DOF inertial solution. With gyro bias 0.5°/h and accelerometer bias 10μg, it delivers precision previously found only in larger systems. The 44×47×14mm package supports SPI interface and operates from -40°C to +85°C. Designed as a drop-in replacement for imported IMUs, it serves gimbal stabilization, rail inspection, and UAV navigation with uncompromised performance.
Feature:
● High precision MEMS inertial navigation
● Support dynamic fast alignment
● High bandwidth, high data update rate
● 1 channel SPI
● Small size, light weight
● Solid and reliable
● Fully compatible with a foreign 10 °rees of freedom inertial measurement system
● High precision MEMS inertial navigation
● Support dynamic fast alignment
● High bandwidth, high data update rate
● 1 channel SPI
● Small size, light weight
● Solid and reliable
● Fully compatible with a foreign 10 °rees of freedom inertial measurement system
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
Inertial measurement Unit GS16488 is a domestic inertial measurement equipment with high performance, small size and high overload resistance. Gyroscope zero bias stability 0.5°/h (Allan), accelerometer zero bias stability 10µg (Allan).
It can be used for precise navigation, control and dynamic measurement of weapons. This series of products adopts high-precision MEMS inertial devices, with high reliability and high robustness, and can accurately measure the angular velocity and acceleration information of the moving carrier in harsh environments.
The inertial measurement unit GS16488 with built-in three-axis gyro and three-axis accelerometer is used to measure the carrier's three-axis angular rate and three-axis acceleration.
Through the serial port according to the convention communication protocol output error compensation (including temperature compensation, installation misalignment Angle compensation, nonlinear compensation, etc.) gyroscope, accelerometer data, and built-in three-axis magnetic sensor, pressure sensor.
Pin configuration
| Pin Number | Name | Type | Describe |
| 10,11,12 | VDD | Power | |
| 13,14,15 | GND | Power Ground | |
| 7 | DIO1 | Input/Output | Universal I/O, configurable |
| 9 | DIO2 | Input/Output | |
| 1 | DIO3 | Input/Output | |
| 2 | DIO4 | Input/Output | |
| 3 | SPI-CLK | Input | The SPI master/slave mode is configurable. The default mode is slave |
| 4 | SPI-MISO | Output | |
| 5 | SPI-MOSI | Input | |
| 6 | SPI-CS | Input | |
| 8 | RST | Input | Restoration |
| 23 | VDDRTC | Power supply | / |
| 16～21,24 | NC | Spare pin | Manufacturer's reservation |
Electrical Interface
3 (13)
2 (14)
Dimensions
Coordinate System Definition
The coordinate system of the gyroscope and accelerometer is defined as shown in the figure below, with the arrow direction being positive.
Technical Specifications
| Parameter | Test condition | MIN | TYP | MAX | Uints | |
| Power supply parameter | ||||||
| Voltage | 3.0 | 3.3 | 3.6 | V | ||
| Power dissipation | 1.5 | W | ||||
| Ripple | P-P | 100 | mV | |||
| Product performance | ||||||
| Gyroscope | Range | ±400 | ±450 | °/s | ||
| Bias stability | Allan | 0.8 | ° /h | |||
| Random walk | 0.06 | ° /√h | ||||
| Bias Repeatability | −40°C ≤ TA ≤ +85°C | 0.1 | 0.2 | °/s | ||
| Scale factor repeatability | −40°C ≤ TA ≤ +85°C | 0.1 | 1 | % | ||
| Scale factor nonlinearity | FS=450 º/s | 0.1 | 0.2 | %FS | ||
| Bandwidth | 400 | Hz | ||||
| Accelerometer | Range | ±10 | g | |||
| Bias stability | Allan | 0.01 | mg | |||
| Random walk | 0.02 | 0.02 | m/s/√h | |||
| Bias Repeatability | −40°C ≤ TA ≤ +85°C | ±2 | mg | |||
| Scale factor repeatability | −40°C ≤ TA ≤ +85°C | 0.5 | 1 | % | ||
| Scale factor nonlinearity | 0.1 | %FS | ||||
| Bandwidth | 200 | Hz | ||||
| Magnetometer | Dynamic measuring range | ±2.5 | gauss | |||
| Resolution | 120 | uGauss | ||||
| Noise density | 50 | uGauss | ||||
| Bandwidth | 200 | Hz | ||||
| Barometer | Pressure range | 450 | 1100 | mbar | ||
| Resolution | 0.1 | mbar | ||||
| Absolute measurement accuracy | 1.5 | mbar | ||||
| Communication interface | One SPI | Baud rate | 15 | MHz | ||
| Structural characteristics | Size | 44×47×14 | mm | Size | ||
| Weight | 50 | g | Weight | |||
| Reliability | MTBF | 20000 | h | |||
| Continuous working hours | 120 | h | ||||
| Environment | ||||||
| Operating temperature | -40 | 75 | °C | |||
| Storage temperature | -45 | 85 | °C | |||
| Vibration | 10～2000Hz，3g | |||||
| Impact | 30g，11ms | |||||
| Overload | (Half-sine 0.5msec) | 1000g | ||||
PDF
DOCX
Robot, antenna stabilization
